Pallet Jack Wheel Block System

Pallet Jack Wheel Block System

Description: Pallet truck wheel blocks can weigh more, move goods more quietly and smoothly, and the guide wheels are more flexible.
Category: Conveying System
Updatetime: 2024-12-20
Details

Pallet truck wheel blocks can weigh more, move goods more quietly and smoothly, and the guide wheels are more flexible.

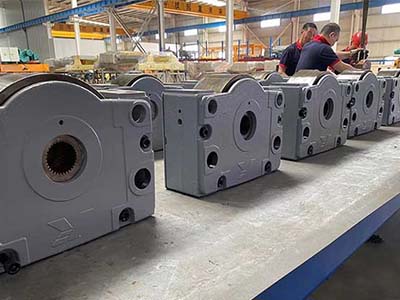

Housing of DRSA Wheel Block System made of spharoidal graphite cast iron, painted gray. Travel wheel made of GGG 70, with high-quality roller bearing.

The five connection surfaces are machined and provide for a multitude of connection variants. 4 screws for inverted mounting are supplied. The housing is painted gray (RAL 7001) and can be repainted.

Traveling wheel block system with PU wheel(Polyurethane-Elastomer), for higher traction at low oprating noise.

A very robust, universal, maintenance-free travel wheel system available in 8 sizes. It is designed for various travel applications with wheel loads from 2.75t  to 40t and travel speeds up to 240 m/min (depending on version and load).

It can even be used at extreme ambient temperatures from -20 °C to +60 °C. Engineers who want to develop their own drive systems can also achieve fast and reliable solutions using the versatile modular construction system.

The travel-wheel systems can be combined with the geared motors RBM/I to form a compact drive unit.

Shiyang is a manufacturerengaged in the design, production and after-sales of traveling wheel blocks for many years. If you have any customized needs, please feel free to contact us.
