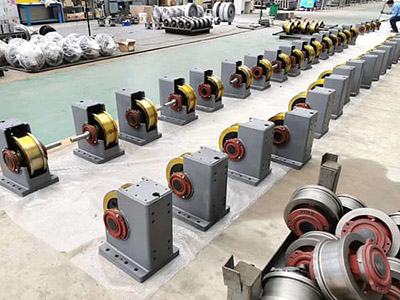

Demag drive wheel block set system is a versatile wheel system suitable for different application scenarios, including heavy-duty handling applications; material handling, feeding, transfer, distribution or merging applications; high-temperature applications with a maximum temperature of up to 250 ° C, or anywhere a stainless steel housing is required; and rail transport of heavier loads. Different series of Demag wheel block systems can quickly and reliably meet different drive requirements.

Features

• Demag DRS 112 to 500 (load capacity from 2.75 tons to 40 tons)

• Special reinforcement ribs for high rigidity

• Various wheel designs - made of ductile iron (GGG 70), polyamide or hydropur tire, polyurethane

• High-quality housing for optimal protection of the travel wheels and bearings

• Compact system design with high ground clearance of the wheel blocks

• Horizontal guide roller units and buffers in various sizes and designs (optional)

• Housing can be connected directly to the superstructure

• Asymmetric housing for easy installation

• Easy connection to the superstructure due to compact housing design, tight position tolerances and high dimensional accuracy in all planes

• The five-sided closed cast housing reliably protects the travel wheels from any mechanical influences

• Low friction and high wear resistance

• Integrated wear indicator on the flanged wheel for remote visual diagnosis

• Heavy loads, rail transport. The devices are equipped with offset and right-angle gear motors from the modular industrial drive series.

• Demag wheel systems can be installed in hollow profile sections, box-section beams and used as angular bearing travel units

• Integrated connections, e.g. for torque supports, guide roller units and buffers.

• Four variants for connection to the customer's superstructure

K: Top connection

B: Pin connection

S: End connection

W: Side connection

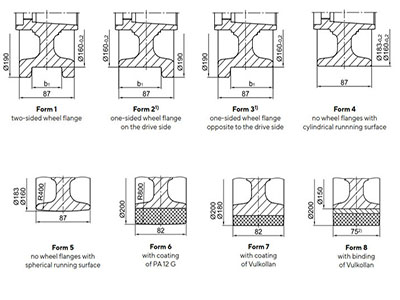

• A wide range of travel wheel shapes available, both in standard configurations and in customer-specific designs

A: Guided by flanges on both sides, for rail systems

B: Flangeless wheel, optionally with side guide wheels, also with concave or profile to customer specifications

D: Wheel guided by flange on one side, for installations running on the ground

E: Flangeless wheel with larger diameter for increased ground clearance

S: V-shaped, trapezoidal or concave wheel for guided applications

F: Flangeless running wheel with Hydropur tires with high acceleration and quiet running characteristics

C: flangeless concave polyamide wheels for quiet running and track-friendly

Shiyang is a professional wheel block system design and production manufacturer. We have provided standard or customized mobile crane solutions for many large factories or enterprises. We can produce according to your CAD drawings or you can explain your requirements and we will help you design. You are welcome to come to learn more about the consultation.
