Wheel Block System

DRS 112 wheel blocks are precision-engineered, modular travel units designed for industrial material handling, offering robust cast steel construction and versatile mounting options for seamless integration into rail-bound transfer carts and automated warehouse systems.

Advantages of DRS 112 Wheel Blocks

Precision Bearing Configuration: These units employ lifetime-lubricated deep-groove ball bearings to ensure consistent long-term reliability and minimal maintenance.

Flexible Drive Options: The system provides both driven and non-driven (idler) configurations, allowing for highly flexible integration into various transport system architectures.

Travel Wheel Shapes and Design: The series offers seven distinct shapes and design (A, B, D, E, S, F, and C) to satisfy diverse guidance and travel needs:

Type A: Features double flanges for secure guidance in rail systems.

Type B: Designed without flanges, allowing for the addition of side guide rollers or custom profile specifications.

Type D: Utilizes a single flange, primarily for ground-based rail systems.

Type E: Features a large-diameter, flangeless design to increase ground clearance.

Type S: Offers special profiles (V-shape, trapezoidal, or concave) tailored for specific guidance applications.

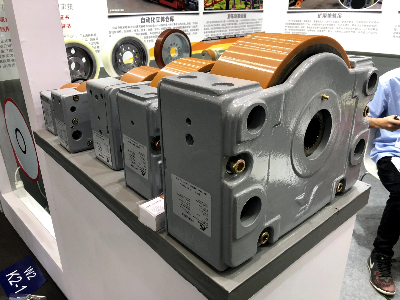

Type F: Utilizes flangeless wheels with Hydropur tires to enable high acceleration and quiet operation.

Type C: Employs flangeless, concave polyamide wheels that ensure quiet running while minimizing track wear.

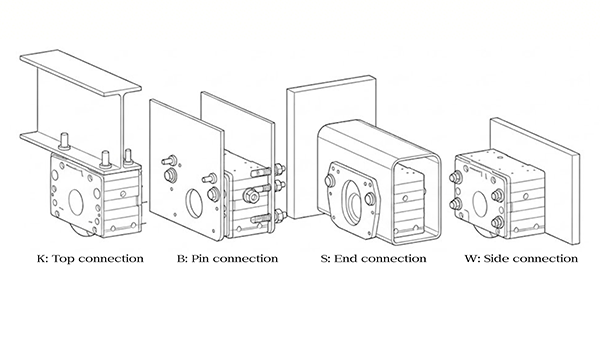

Versatile Connection Variants: The system provides four standard connection methods, including top (K), pin (B), end (S), and side (W) connections.

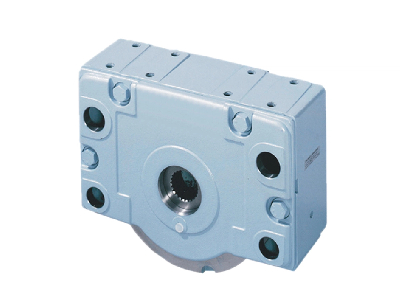

Robust Structural Protection: The housing utilizes a fully enclosed, five-sided cast steel design that effectively protects internal components from mechanical damage and environmental debris.

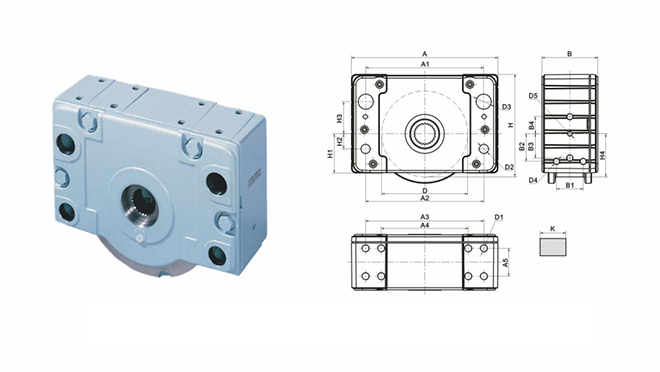

Technical Specifications for DRS 112-500MM Wheel Blocks

Applications of DRS 112 Wheel Blocks

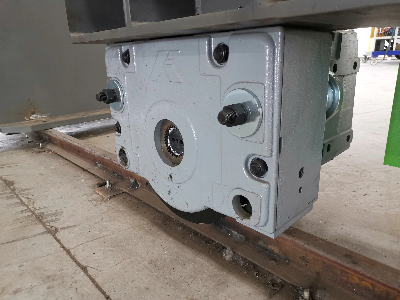

To achieve optimal operational performance, operators should select wheel materials based on their specific rail and environmental conditions. For ground-level or flat-surface operations, high-performance polyurethane (PU) wheels are recommended, as they offer ultra-quiet operation, floor protection, and high traction, making them ideal for warehouse shuttles, and cleanroom automation. For steel rail applications, high-strength cast steel wheels are the preferred choice, as they deliver the extreme load-bearing capacity and durability required for rail-bound transfer carts, overhead cranes, and large-scale industrial transport systems.

The Demag DRS 112 serves as more than just a travel unit; it acts as the cornerstone for ensuring your automated equipment operates with 24/7 stability and efficiency. By integrating a modular design with exceptional durability, it simplifies complex drive logistics, helping you achieve lower operating costs (OPEX) and maintain a competitive edge in your industry. Request a Quick Quote.
