Wheel Block System

In heavy industrial manufacturing, port logistics, and steel production, travel gear mechanisms are exposed to relentless mechanical stress, heavy dynamic shock loads, and harsh operating environments. Under these demanding conditions, off-the-shelf or custom-welded wheel assemblies frequently suffer from flange wear, bearing premature failure, and high maintenance downtime.

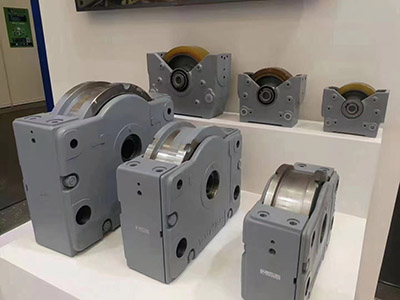

The Demag DRS wheel block system provides a modular, heavy-duty solution designed to overcome these operational bottlenecks. Engineered for high load capacities ranging up to 40 metric tons (400 kN) per wheel, the DRS wheel range combines high-strength materials, precision bearing geometry, and flexible structural integration into a complete, ready-to-install travel package.

The Advantages of Demag DRS Wheel Block for Heavy-Duty Equipment

Heavy-duty material handling requires travel components that balance structural rigidity with track protection. The Demag DRS wheel block system achieves this through three core design principles:

1. Superior Material Engineering

Spheroidal Graphite Cast Iron (GGG70): As the primary tread option for rail-bound equipment, GGG70 nodular cast iron features a unique graphite matrix that offers high tensile strength and self-lubricating properties. This significantly reduces friction and wear on both the wheel flange and the crane rail (preventing rail gnawing).

Forged Steel Options (42CrMo): For extreme payload environments and high dynamic impact loads where nodular iron reaches its mechanical limits, forged steel wheels deliver maximum toughness and resistance to fatigue cracking.

2. High-Capacity Bearing Configuration

To handle the heavy radial deadweight of cranes and transfer machinery, alongside the intense axial lateral forces caused by crane skewing or track misalignment, DRS wheel blocks utilize double-row tapered roller bearings. This internal configuration distributes multi-directional loads evenly across raceways, providing superior rigidity, impact absorption, and long service life.

3. All-Weather Sealing Systems

Dust, moisture, scale, and abrasive particulate ingress are primary causes of bearing failure. The integrated multi-layer sealing system—comprising a non-contact outer labyrinth seal and a heavy-duty inner lip seal—firmly locks high-grade lithium lubricant inside the housing while blocking contaminants out.

DRS Wheel Range Overview & Load Specifications

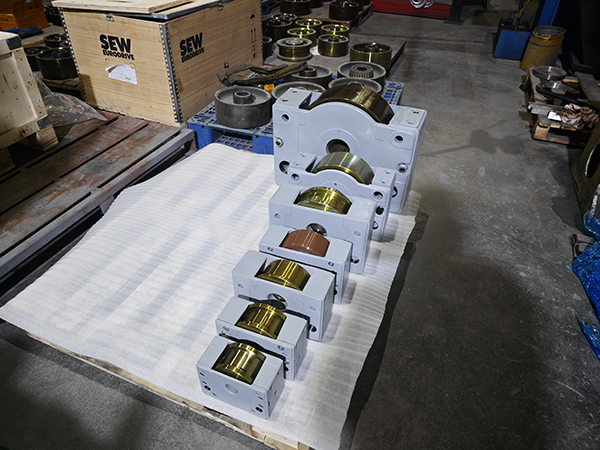

The DRS product line spans eight standardized model sizes, designated by wheel diameter in millimeters. For heavy-duty industrial applications, the larger sizes in the range provide certified load-bearing performance:

Key Heavy-Duty Industry Applications

Steel Mills & Foundries: Ladle cars, scrap charging cars, and heavy-duty coil transport systems operating under high temperatures and heavy dust.

Ports & Maritime Logistics: Container quay cranes, rubber-tired gantry (RTG) crane travel bogies, and shipyard transfer platforms.

Automotive & Manufacturing: Heavy mold transfer carts, automated guided vehicles (AGVs), and automated storage and retrieval systems (ASRS).

Mining & Bulk Material Handling: Reclaimers, stacker drive units, and heavy conveyor tripper cars.

Optimize Your Heavy-Duty Motion Systems

Choosing the right wheel block system is a long-term investment in operational uptime and total cost of ownership (TCO). Discover how the Demag DRS wheel block range can elevate the safety, capacity, and service life of your heavy-duty equipment. Contact our engineering team today.
