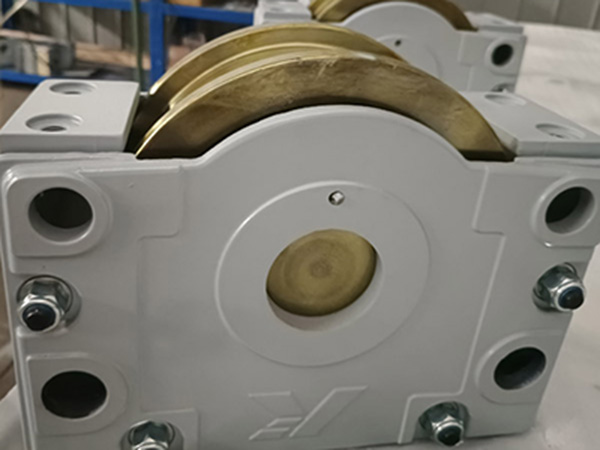

Wheel Block System

In modern industrial logistics, automated warehousing, and heavy-duty crane travel systems, the stability and transmission efficiency of the travel mechanism directly determine the operational performance of the entire production line. As a global benchmark for industrial travel units, the Demag DRS wheel block system is highly favored for its modular design and exceptional load-bearing performance.

This article uses the classic model DRS-160-A35-A-60-K-X-A20 as an example to provide an in-depth analysis of its core parameters, structural design, and industrial application advantages.

Model Parameter Decoding

According to Demag's official standard nomenclature, the structural specifications of this model can be decoded section by section:

1. DRS-160: Indicates that the core wheel diameter of this wheel block is 160 mm. As a medium-to-heavy-duty model in the DRS Wheel Range, it achieves an excellent balance between load capacity and space savings.

2. A35: A35 is a specific wheel tread code which, working in tandem with the "60" configuration parameter, precisely defines the physical width of the wheel tread. This design ensures that the wheel perfectly matches the corresponding rail specifications for smooth rolling.

3. A: The double-flange travel wheel body is made of high-strength spheroidal graphite cast iron (GGG 70), offering excellent wear resistance. The double-flange design provides natural, two-way rigid guidance as the vehicle runs on the rail, effectively preventing derailment.

4. K: The top surface of the housing is precision-machined, allowing the steel structure of the equipment to be directly bolted and secured to the top of the wheel block. This mounting method offers high resistance to shear forces and is widely used in equipment with strict vertical load requirements.

5. X: Indicates that this model is not prepared for fitting accessories. This means the wheel block structure is more compact, focusing exclusively on standard rail operation without expanding to accommodate horizontal guide rollers or other external add-ons.

6. A20 (Drive Connection Preparation): This is the key identifier for a driven wheel block. A indicates that the input interface is fully prepared to mount a Demag A-series offset gearbox (offset geared motor), and the subsequent "20" corresponds to the specific gearbox frame size.

Core Technical Advantages

1. Combination of Nodular Cast Iron and Precision Double Flanges: The wheel body, made of GGG 70 spheroidal graphite cast iron, not only delivers high compressive strength and load capacity but also features excellent self-lubrication and vibration-damping properties. The double-flange design eliminates the need for additional horizontal guiding devices, ensuring neat and smooth rail operation.

2. Robust Five-Machined-Face Housing with Top Mounting: The DRS-160 features a high-strength housing design. Its Type K top connection transfers heavy loads directly and uniformly into the high-grade aluminum alloy or cast iron housing. The modular, ready-to-fit "box" structure greatly simplifies installation and alignment work for mechanical engineers.

3. Efficient Transmission via Offset Drive: The pre-engineered A20 interface creates a perfect fit with Demag offset geared motors. The compact axial layout of the offset gearbox allows the entire drive mechanism to fit closely against the side of the equipment, significantly reducing lateral space consumption and maximizing space utilization.

Typical Application Scenarios

Based on the technical characteristics of the DRS-160-A35-A-60-K-X-A20, it is an ideal choice for the following industrial applications:

1. Automated Storage and Retrieval System (AS/RS) Stacker Cranes: Used for the horizontal travel drive of stacker crane bottom chalons in automated warehousing, meeting the demands of high-frequency start-stops and high-precision positioning.

2. Rail Guided Vehicles (RGV): For heavy-duty material transfer cars operating on fixed tracks. The top connection and double flanges ensure that the vehicle body remains stable even when carrying several tons of cargo.

3. Crane End Carriage Mechanisms: Functions as the travel wheel block for small-to-medium bridge cranes or gantry cranes, providing a smooth and quiet travel experience.

Conclusion

The Demag DRS-160-A35-A-60-K-X-A20 wheel block is more than just a travel component; it is a highly integrated, systematic solution combining load bearing, guidance, and drive functions. Through precise modular selection, it delivers a long, maintenance-free service life to support rail-bound conveying equipment across various industries.
