Wheel Block System

In heavy-duty material handling, warehousing logistics, and various large-scale industrial rail transit systems, thewheel block systemserves as the core component for load-bearing and travel, making its stability and modular design absolutely critical. As a global benchmark in industrial rail travel, theDRS series wheel blocksare world-renowned for their exceptional load capacity and highly flexible configurations.

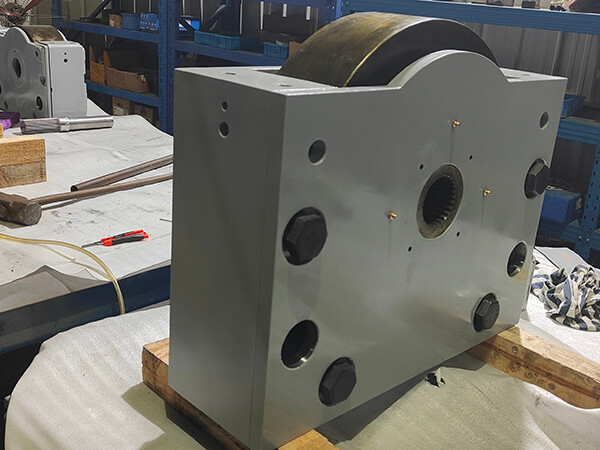

This article provides an in-depth teardown of the specific model DRS 500-NA-B-90-W-X-X, analyzing its core technical parameters, unique advantages, and optimal application scenarios.

Technical Parameters

According to the standardized industrial modular nomenclature matrix, the hardware configuration and technical specifications of this model are defined as follows:

1. 500 (Size Code): Nominal travel wheel diameter of 500 mm, classifying it as a heavy-duty, large-scale size.

2. NA (Drive Type): Idler wheel block (non-driven) without a power input interface, dedicated exclusively to bearing radial loads within the travel system.

3. B (Wheel Type): Type B travel wheel without flanges. The flat tread design eliminates rigid flanges, resulting in exceptionally low rolling resistance.

4. 90 (Tread Width): Effective contact width of the wheel tread is 90 mm.

5. W (Connection Structure): Side connection. The wheel block is securely bolted to the chassis via precision-machined lateral mounting surfaces.

6. X (Accessory Status): Not prepared for fitting accessories; the housing does not have pre-machined surfaces for external guide arrangements.

7. X (Shaft End Interface): No gearbox considered; the idler shaft end adopts a standard enclosed or smooth-shaft design.

Core Technical Advantages Analysis

1. Exceptional Load Capacity & Large Diameter Benefits: As a large-scale wheel block with a 500 mm wheel diameter, this model is purpose-built for heavy-duty applications. The housing is typically cast from high-strength spheroidal graphite cast iron (e.g., GGG70) or premium cast steel, enabling it to withstand massive radial loads. The large 500 mm diameter not only effectively reduces rolling resistance but also minimizes the unit contact stress between the wheel and the rail during high-load operations, thereby significantly extending the service life of both the rail and the wheel.

2. Technical Insights of the Flangeless Type B Design: Unlike traditional double-flanged wheels (Type A), the flangeless Type B wheel eliminates lateral flanges. The primary advantage of this design is a significant reduction in friction loss, preventing severe wear caused by lateral contact between the wheel flange and the rail side. Concurrently, it eliminates the "rail-gnawing" (wheel-to-rail binding) phenomenon caused by rail alignment deviations, ensuring smoother and quieter equipment operation.

3. Flexible and Robust Side Connection: The Type W side connection offers mechanical engineers immense spatial freedom. The wheel block is directly bolted to the end carriages or sidewalls of the equipment via high-strength fasteners. This mounting method provides excellent resistance to lateral torque. More importantly, during routine maintenance or replacement, service personnel can perform disassembly and assembly from the side without having to crane or dismantle the upper structure, drastically improving maintenance efficiency.

Typical Application Scenarios

As a large-scale, purely load-bearing, flangeless idler wheel block, the DRS 500-NA-B-90-W-X-X is widely utilized in the following heavy industrial equipment where load capacity and travel smoothness are paramount:

1. End Carriages Cranes: Serving as the idler (non-driven) load-bearing wheel block for overhead traveling or gantry cranes, working in tandem with the driven end to handle heavy-tonnage material lifting.

2. Heavy-Duty Stacker Cranes: Utilized as the idler support unit at the base of large stacker cranes in high-bay automated guided warehouses to guarantee travel mechanism stability.

3. Rail-Guided Heavy Transporters: Deployed on workshop rail-guided AGVs or hydraulic heavy-duty transfer carts as high-capacity load-bearing idler wheels.

Conclusion

The DRS 500-NA-B-90-W-X-X perfectly epitomizes the modern industrial pursuit of"modularity, heavy-duty capability, and high reliability."It minimizes travel resistance through a refined flangeless design, shoulders massive heavy-industrial loads with its large 500 mm wheel diameter, and simplifies installation and maintenance via its side-connection interface. For rail travel systems striving for a long service life and low maintenance costs, this model is undoubtedly an ideal idler load-bearing solution.
