Wheel Block System

In the fields of industrial material handling and precision motion, the Demag DRS Wheel Block System has long been regarded as the industry benchmark. Its highly modular design and reliable load-bearing capacity make it a core component for Automated Guided Vehicles (AGVs), cranes, and various automated production lines.

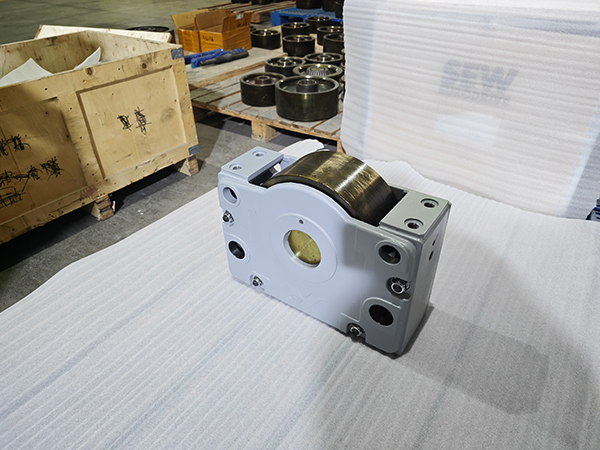

Today, we will focus on the breakdown of a specific customized model: DRS-315-NA-B-0-B, and explore its application advantages in complex industrial environments.

Model Parameter Introduction

Understanding the coding logic of the DRS series is a prerequisite for ensuring precise equipment selection.

DRS-315: This indicates that the wheel block belongs to the DRS with a wheel diameter of 315mm. This size is typically used for medium-to-heavy load scenarios, with a single-wheel load capacity reaching several tons.

NA: Generally refers to Spheroidal graphite cast iron wheels. These wheels offer extreme strength and wear resistance, making them ideal for running on hard steel rails with minimal rolling resistance.

B Type: Due to the absence of side flanges, this wheel type minimizes rolling resistance and reduces noise levels during operation. It is typically paired with horizontal guide rollers to achieve precise rail navigation.

0: The 0 indicates that this model utilizes Demag standard configurations, ensuring high compatibility and ease of interchangeability for spare parts.

B: This Pin mounting interface effectively accommodates minor operational misalignments, providing structural flexibility while ensuring a secure and stable installation.

Core Technical Advantages

1. Superior Load Capacity and Stability: The DRS 315 system provides excellent rigidity through its unique spheroidal graphite cast iron housing. It ensures wheel concentricity and smooth running even under heavy-load starts and high-frequency braking.

2. Exceptional Load Capacity & Durability: The 315mm diameter combined with Spheroidal Graphite Cast Iron ensures a high load-bearing capacity per wheel. This material is not only wear-resistant but also offers excellent vibration damping under heavy stress.

3. Frictionless & Silent Travel: The B-Type (Flangeless) design eliminates contact between the wheel flange and the rail side. This significantly reduces rolling resistance and operational noise, making it ideal for high-speed or quiet-environment applications.

4. High Installation Flexibility: The Pin connection interface provides a flexible connection. It can accommodate minor misalignments in the support structure, preventing stress concentration and ensuring reliable performance even on less-than-perfect rail systems.

Typical Application Scenarios

1. Cross Conveyor Systems: The DRS 315 Wheel Block System provides a high-capacity, low-friction mobility solution for cross conveyor systems, ensuring precise, quiet, and reliable heavy-duty material transfer through its modular design and advanced flangeless wheel technology.

2. Cranes in Smelting Plants: Within the demanding environments of aluminium and metal smelting facilities, cranes must operate reliably under extreme heat and heavy dust. The DRS 315, with its robust spheroidal graphite cast iron wheels and heat-resistant configuration, is the premier choice for ladle cranes and heavy-material handling equipment in these high-temperature sectors.

Conclusion

The Demag DRS 315 series is more than just a wheel; it is a precision-integrated travel unit. This model provides global industrial customers with a stable, precise, and highly resilient mobile power solution.
