In modern warehousing logistics and automated production lines, cross-conveyors serve as the core equipment for connecting different operating lines and achieving cross-track material transfer. To ensure operational stability under high-frequency and high-load conditions, selecting a high-performance travel system is critical. This article explores the specific application of the Demag DRS 160 wheel block in this scenario.

Project Background and Requirements

An automated logistics center required a cross conveyor system capable of carrying heavy loads ranging from 5 to 8 tons to rapidly distribute palletized goods between parallel production lines.

1. Operating Environment: Indoor industrial setting with precision-machined steel rails.

2. Performance Requirements: Smooth operation, low noise, long maintenance intervals, and extremely high installation precision.

3. Core Pain Points: Traditional welded travel structures often suffer from uneven rail wear and difficulties in installation calibration.

Technical Advantages of the DRS 160 Solution (Customized)

To meet these requirements, the configuration DRS 160-NA-B-0-K-X-X offers distinct industrial advantages:

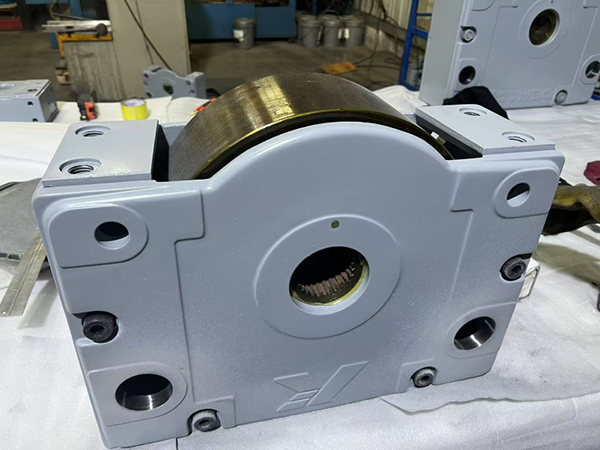

1. Integrated Modular Housing: The housing is made of high-quality spheroidal graphite cast iron with five machined mounting surfaces. This "ready-to-install" design eliminates complex welding and ensures absolute parallelism of the axes.

2. Without Wheel Flange Design (Code 0): Since the cross-conveyor operates over short distances with high stability requirements, using no-flange wheels coupled with side guide rollers effectively reduces friction and vibration caused by rail misalignment, lowering running resistance.

3. Spline Connection (Code K): The wheel is coupled to the drive motor via an internal spline. Compared to traditional keyed connections, the spline transmits higher torque more uniformly, making it ideal for the frequent start-stop and forward-reverse cycles of cross-conveyor operations.

System Integration Features

1. Drive and Transmission: The DRS 160 couples directly with Demag A-series offset gearbox motors via the side spline interface. This direct-drive design eliminates the need for chains or couplings, resulting in an extremely compact structure that saves space for lifting or chain transmission mechanisms.

2. Load Distribution: Utilizing a four-point support layout, each wheel block handles a dynamic load of approximately 1.5 to 2 tons. The spheroidal graphite cast iron material (Code B) provides excellent self-lubricating properties, ensuring minimal rolling resistance even at full load during startup.

Conclusion

The Demag DRS 160 wheel block is more than just a component; it is a mature industrial travel solution. For cross-conveyor applications requiring "stability, accuracy, and speed," its standardized interface and superior mechanical performance save significant R&D and calibration time, making it the ideal choice for upgrading factory logistics automation.
