Wheel Block System

In smart manufacturing, heavy-duty machine tools, automotive stamping, and aerospace assembly plants, heavy-duty transfer cars (including electric transfer carts and rail-guided vehicles) serve as critical links connecting various processing bays, moving massive loads ranging from several tons to over a hundred tons.

Operating under extreme conditions with high-tonnage and continuous start-stop cycles, these transfer cars demand an exceptionally rugged chassis travel system. The system must absorb heavy impact loads, ensure smooth, vibration-free travel, and allow for rapid maintenance. Traditional shop-assembled wheel-and-bearing setups frequently suffer from early bearing failures, wheel flange wear, and oil leakage, and are rapidly being phased out by modern engineering standards.

DRS Wheel Block System for Transfer Cars

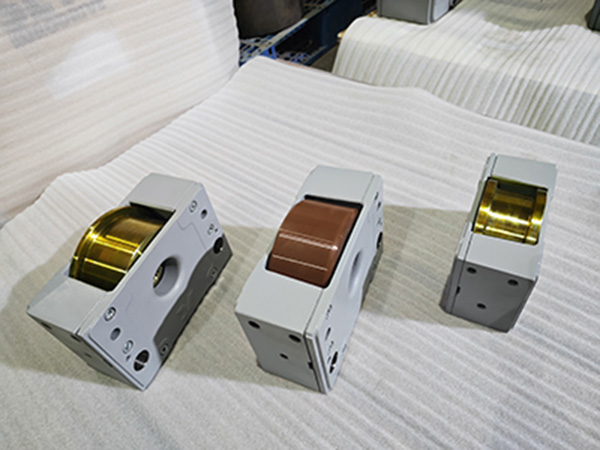

A DRS Wheel Block is far more than an isolated travel wheel. It is a "plug-and-play" modular chassis unit that seamlessly integrates high-performance travel wheels, fully enclosed heavy-duty bearings, precision sealing structures, a high-strength rigid housing, and integrated drive connection flanges.

To accommodate the diverse floor conditions encountered by transfer cars, the DRS wheel range offers two core configurations:

1. Trackless Layout (Without Flange / A-Type Smooth Tread): The wheel tread is cast with high-performance polyurethane (PU/Hydropur) elastomers. This allows the transfer car to operate directly on expensive self-leveling epoxy coatings, anti-static panels, or concrete floors without requiring guide rails. It ensures flexible steering and abrupt stops while completely protecting delicate floors and leaving zero black tire marks.

2. Guided Rail Layout (With Flange / Single or Double Flange Steel Wheels): Utilizing high-strength cast iron or alloy steel wheels, these blocks lock onto floor-embedded steel rails. They offer extreme load capacities exceeding a hundred tons along with exceptional linear tracking accuracy.

Four Core Technical Advantages of DRS Wheel Blocks Empowering Transfer Cars

1. High-Strength Steel Casting Housing: Precision-cast from high-strength steel casting, the fully enclosed housing provides exceptional rigidity and vibration damping, absorbing massive instantaneous vertical shock loads from heavy dies or steel coils without bearing distortion.

2. Modular Plug-and-Play Design: Featuring a standardized five-sided connection design, the block secures to the frame with just a few bolts, allowing the entire unit to be rapidly unbolted and replaced, cutting maintenance time by more than 50%.

3. Customized Wheel Material Options: Available in high-strength steel or premium polyurethane coatings, the wheels can be tailored to maximize rail load capacity or protect delicate factory floors while significantly reducing rolling resistance and drive power consumption.

4. Precision Alignment Adjustment: The integrated alignment slots within the mounting holes allow for millimeter-level adjustments of wheel parallelism and verticality during assembly, fundamentally eliminating equipment crabbing, derailing, or uneven tread wear.

Diversified Material Customization Balancing High Load and Low Energy

Depending on the specific payload and power requirements of the transfer car, the wheel material and geometry can be highly customized:

1. Premium Polyurethane (PU) Coating: Incorporating widened profiles and a thickened elastic layer, these wheels distribute single-axle pressure while delivering exceptionally low rolling resistance. This extends the single-charge battery autonomy of trackless transfer cars by more than 20%.

2. Solid Lubrication Bearings (Oil-Free Design): For transfer cars operating in semiconductor or pharmaceutical cleanrooms, internal bearings can be specified with solid lubrication technologies (such as graphite or PTFE). This eliminates liquid oil vaporization and prevents Airborne Molecular Contamination (AMC).

3. Precision Alignment Slots to Eliminate Flange Wear and Crabbing

4. Multi-axle driven transfer cars can suffer from severe tracking errors if the wheels are not perfectly parallel. This causes trackless carts to drift off-course and railed carts to experience harsh wheel-flange friction and "rail-biting."

Premium DRS wheel block systems feature integrated alignment slots within the mounting bolt holes. This allows engineers to easily perform millimeter-level adjustments to both wheel parallelism and verticality during cart assembly, fundamentally eliminating uneven wear and tracking bias.

Core Applications

In factory conveying and material handling sectors, the DRS system offers ideal specification sizing corresponding to the transfer car's payload class:

1. Light-to-Medium Duty Shop Carts / RGVs / Intelligent AGVs: Utilize DRS 112 / DRS 125 / DRS 160 wheel blocks.

2. Transfer Cars / Steel Coil Carts / Heavy Industrial Shunt Carts: Utilize DRS 200 / DRS 250 (with 100mm widened wheels) / DRS 315 and larger heavy-duty configurations.

Conclusion:

The fundamental value of any high-performance heavy-duty transfer car lies in a stable, hassle-free chassis. Equipping your transfer fleets with the integrated DRS Wheel Block System provides them with a rugged, industrial-grade foundation. Combining floor protection, rapid maintenance, and massive load limits, it has become the definitive choice for modern factory automation upgrades.
