Crane Wheel Blocks

In modern automotive crash test services, high-precision material handling systems are the unsung heroes of entire laboratory operations. Whether it is test vehicles, ballast sleds, or post-crash wreckage, everything must be frequently moved using specialized test cranes, floor-track dollies, or towing systems.

Since automotive safety testing involves numerous high-precision sensors, high-speed cameras, and strict track alignment, laboratories impose near-stringent requirements on the travel smoothness, instantaneous impact resistance, and track adaptability of crane travel systems.

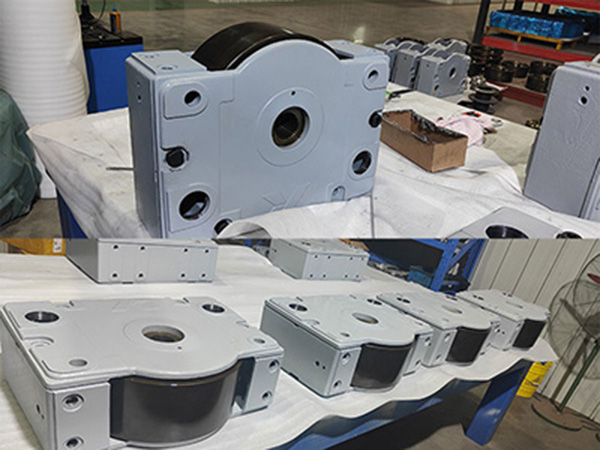

As a heavy-duty material handling powerhouse, DRS 500 wheel block system, featuring a high-strength steel casting housing, integrates deeply with automotive test cranes to provide millimeter-level precision support for top-tier automotive safety centers worldwide.

Steel Casting Housing

Automotive crash tests release immense energy and strong ground shockwaves instantly. Although cranes carrying and suspending test equipment are not directly involved in the impact, their tracks and wheels face high-frequency secondary vibration shocks at any time. Therefore, our DRS 500 housing rejects ordinary materials and is integrally cast from premium structural steel casting. It possesses extremely high yield strength and ultimate fracture toughness. When facing the instantaneous severe shocks of crash testing, the steel casting housing effectively resists fatigue and impact without brittle fracture, ensuring absolute structural safety of the test crane in high-risk testing environments.

Optional Polyurethane Coating

Modern automotive safety laboratories are not just heavy industrial sites, but "cleanrooms" filled with precision electronic instruments. The metal debris and piercing noise generated by traditional steel wheels rubbing against steel rails can interfere with highly sensitive acoustic testing or the focus of high-speed cameras. Tailored for the specific environment of automotive testing, the DRS 500 offers a customized solution with polyurethane-coated wheels. The polyurethane material features excellent damping and shock-absorption properties, achieving ultra-quiet operation. More importantly, the coated wheels can run directly on the laboratory's epoxy floors or fine steel plates without scratches or debris. The high coefficient of friction also effectively prevents wheel slippage during rapid crane start-and-stop sequences, ensuring absolute alignment of the travel path.

Flanged Configuration

In automotive test towing systems that require high-speed travel or extreme smoothness, the friction between the wheel flange and the track is the biggest enemy. The DRS 500 flexibly supports flangeless, single-flange, and double-flange wheels. Among these, the combination of flangeless wheels and lateral guide rollers completely eliminates metal friction between the wheel flange and the side of the track. This not only minimizes travel resistance but also achieves zero track wear, greatly extending the service life of expensive laboratory track systems.

Wheel Configurations

Automotive test cranes must quickly move vehicles out of the test area while also performing ultra-slow micro-alignments. The DRS 500 system perfectly masters this balance of "motion and stillness" through its comprehensive driven and non-driven wheel configurations:

1. Driven Wheels: Equipped with standard splined hub connections, they seamlessly and compactly interface with high-performance frequency-controlled geared motors. Under VFD control, the driven wheels can move single-wheel loads up to 30–40 tons, achieving ultra-low-speed smooth crawling adjustments or fluid acceleration and towing without any jerkiness.

2. Non-driven Wheels: Featuring integrated heavy-duty, fully enclosed bearings, they utilize a sealed, lubed-for-life, maintenance-free design. They maintain extremely low frictional resistance under long-term high-load operations, silently supporting every smooth displacement of the test equipment.

Summary

From the rigid defense of the steel casting housing to the silent micro-operation of polyurethane wheels; from error-free multi-surface mounting interfaces to track adaptation via multiple flange configurations—the DRS 500 wheel block system is no longer just a cold mechanical component, but a high-precision motion control core deeply integrated with automotive test cranes. In the automotive safety testing sector, where data and safety are pursued to the absolute limit, we use hardcore technology to build the most stable material handling foundation for every crash test that changes the future of human mobility.
