In the field of industrial rail transport, such as cranes, transfer cars, and large stage equipment, the reliability and durability of the wheel block system directly determine the operational efficiency and safety of the entire system. The Demag DRS modular wheel block system, with its load capacity of up to 40 tons and wheel diameters of up to 500 mm, has become an industry benchmark for heavy-duty applications. This article will guide you through a detailed understanding of the DRS wheel block, particularly its core transmission component – the splined shaft.
Core Transmission Component: What is the Splined Shaft in the DRS Wheel Block?
The splined shaft is the heart of power transmission in the driven DRS wheel block. It is a shaft component with precision teeth (involute splines). It meshes tightly via external splines on the shaft with internal splines in the gearbox hollow shaft, creating a "backlash-free rigid connection."
This design offers two core advantages:
Efficient Torque Transmission: The splined connection provides a larger contact area, ensuring reliable and smooth power transfer from the motor and gearbox to the wheels. This is particularly suitable for travel drive applications involving frequent starts, stops, and reversing.
Excellent Alignment: Precision spline engagement guarantees strict coaxiality, effectively preventing skewing and vibration during operation, thereby reducing abnormal wear on both the rails and wheels.
Modular Configuration and Technical Features of the DRS Wheel Block System
The strength of the DRS system lies in its modular design, which allows for flexible configuration according to specific needs.

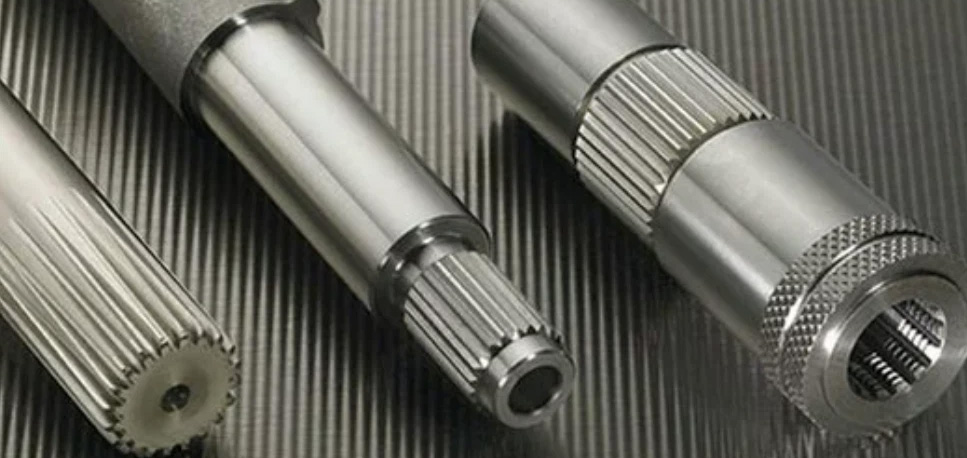

DRS wheel blocks with splined shaft
1. Robust Wheel Block Housing
High-Quality Manufacturing: Produced using modern manufacturing processes to ensure structural strength.
Five-Sided Enclosed Design: Provides excellent dimensional stability and comprehensive protection for internal components.
Multiple Sizes: Available in graduated sizes for different load ratings, optionally with a buffer.
2. High-Performance Wheels and Bearings
Durable Material: Wheels are made of high-strength spheroidal graphite cast iron (EN-GJS-700), offering wear resistance and high load capacity.
Double-Sided Flange Guidance: Ensures smooth running, reduces rail wear, and minimizes operating noise.
Low-Maintenance Design: Self-lubricating wheels and maintenance-free anti-friction bearings with lifetime lubrication significantly reduce daily maintenance costs and efforts.
3. Flexible Drive Options
The DRS system offers various drive configurations to suit different applications:
Direct Drive Solution: Compact structure, low maintenance. Available in vertical or horizontal mounting, equipped with a torque support bracket to balance reaction forces.
Frequency Control: Optionally available with frequency-controlled motors for smooth starting/stopping and precise speed control.
Right-Angle Drive: Provides an efficient solution where installation space is limited.
4. Guide Rollers and Derailment Protection
For special track layouts (such as curves or extra-wide rails), the DRS system can be equipped with guide rollers and derailment protection devices. These effectively reduce traveling resistance and skewing forces, enhancing system safety.
Core Advantages of Choosing the DRS Wheel Block System
Exceptional Load Capacity: Covers a wide range from 500 kg to 40,000 kg.
Superior Reliability: The robust housing and high-quality components ensure a long service life even in harsh industrial environments.
Significant Maintenance Cost Savings: The self-lubricating and lifetime lubrication design enables a virtually "maintenance-free" operation.
Excellent Flexibility: Offers various connection methods (top, side, end, pin connections) for easy integration into the customer's superstructure.
Conclusion
The Demag DRS Wheel Block System is not merely a simple traveling component but a complete drive solution meticulously designed and proven. Its core splined shaft transmission technology and modular concept ensure outstanding performance in high-demand industrial applications.
For detailed technical specifications or application support, contact us.
