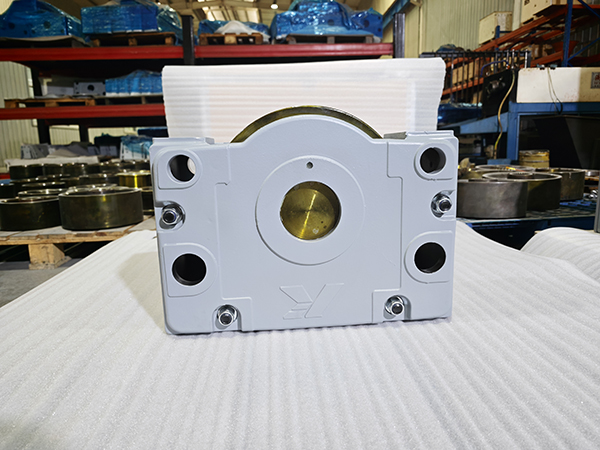

Wheel Block System

Technical Specification

DRS 315: The series name and size. The number represents a nominal wheel diameter of 315 mm.

A65: Wheel shape and width. A denotes a wheel with two flanges, and 65 typically refers to the tread width or the distance between flanges designed for specific rail profiles.

A: Wheel material. This usually indicates high-quality spheroidal graphite cast iron (e.g., GJS 700), which provides excellent self-lubricating properties and minimizes rail wear.

90: Connection size. Refers to the diameter or specific dimension of the splined shaft/drive connection.

K: Mounting type. Indicates the housing design, usually featuring precision-machined surfaces for top or side mounting.

X: Variant/Special option. A placeholder often used for standard configurations or minor custom adjustments (such as special coatings).

A50: Arrangement code. Specific to the bolting pattern or the interface geometry used to attach the block to the end carriage.

Key Technical Advantages

High Load Capacity: The DRS 315 is designed for heavy loads. Depending on travel speed and duty cycle, a single unit can typically support static loads ranging from 18 to 28 tons.

Modular Design: As a pre-assembled, ready-to-install housing, it eliminates the need for complex alignment, significantly reducing assembly time.

Superior Material Science: The use of spheroidal graphite cast iron wheels ensures high vibration damping, quiet operation, and a "track-friendly" performance that extends the lifespan of the crane rails.

Multi-Surface Mounting: The housing features prepared connection holes on five sides, offering maximum flexibility for integration into various steel structures.

Primary Applications

Due to its large diameter and high load rating, this model is commonly found in:

Heavy-Duty Overhead Cranes: Used in both the bridge (long travel) and trolley (cross travel) units.

ASRS Stacker Cranes: Providing horizontal movement in high-bay automated warehouses.

Industrial Transfer Carts: For transporting heavy workpieces across factory floors.

Offshore & Port Equipment: Utilized in mobile structures where reliability under high stress is critical.
