Wheel Block System

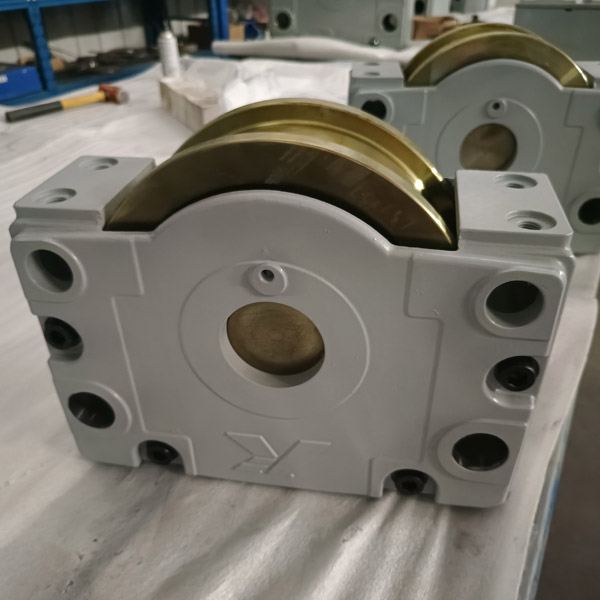

In the realms of material handling and linear drive technology, the DRS Wheel Block System is renowned for its modular design and exceptional adaptability. By combining Polyamide tread surfaces with Spheroidal Cast Iron housings and a Double Flanged geometry, this system pushes the boundaries of durability and acoustic performance.

1. Core Materials: The Perfect Blend of Rigidity and Flexibility

The performance of this wheel block system is rooted in its unique material composition:

Spheroidal Cast Iron (Ductile Iron): The housing is typically manufactured from high-grade spheroidal cast iron (such as GJS-400). Compared to standard grey cast iron, ductile iron offers superior toughness and impact resistance, allowing it to support massive radial loads without brittle failure.

Polyamide (Nylon): The wheel tread or the entire wheel body is crafted from high-performance Polyamide. This engineering plastic provides self-lubricating properties, extreme wear resistance, and excellent vibration damping.

2. Advantages of the Double Flanged Design

The double-flanged wheel geometry is engineered to provide superior track guidance:

Self-Centering: The double flanges effectively "lock" the wheel onto the rail, preventing the risk of derailment during high-speed travel.

Reduced Lateral Wear: In long-distance travel or where rails are not perfectly parallel, the double-flanged structure distributes lateral forces more evenly, protecting the rail sides.

Enhanced Safety: For overhead applications or heavy-duty cranes, the double flange provides a physical fail-safe to keep the system on track.

3. Technical Features and Performance Benefits

A. Ultra-Quiet Operation

Thanks to the vibration-absorbing properties of Polyamide, these wheel blocks operate at significantly lower decibel levels than traditional all-steel wheels. This is critical for indoor warehouses, automated laboratories, or noise-sensitive production environments.

B. Rail Surface Protection

Polyamide is non-aggressive toward the rail. Unlike steel wheels, it does not strip rail coatings or cause surface fatigue (pitting), significantly extending the service life of the entire track infrastructure.

C. Modular Design

The hallmark of the DRS system is its "Plug-and-Play" capability:

Multi-Surface Mounting: The housing features multiple machined surfaces, supporting top, side, or pin-joint mounting.

Drive Compatibility: It can be easily coupled with various gearmotors via splined or keyed shafts.

4. Application Scenarios

This high-performance wheel block system is widely utilized across several sectors:

5. Conclusion

The Polyamide-Spheroidal Cast Iron Double Flanged DRS Wheel Block represents a perfect balance between structural integrity and operational quality. It addresses the heavy-load requirements of industry while leveraging polymer science to achieve lightweight, low-noise, and low-maintenance goals. For designers seeking efficiency and reduced TCO (Total Cost of Ownership), this system remains a premier choice.
