Wheel Block System

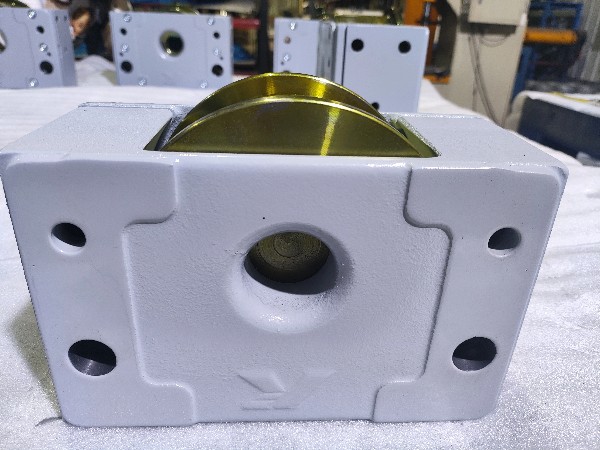

The housing, cover, and wheels of the DRS-200-NA-A-65-K-X-X wheel system are made of ductile iron to ensure structural stability. Carefully selected bearings are matched to the actual load conditions to ensure low maintenance costs. The Shiyang wheel system offers a variety of load capacities to meet the needs of rapidly developing industries and is widely used in various applications, such as cranes, elevators, storage systems, transfer vehicles, conveyor belts, and lifting platforms.

Parameter details

NA: Non-driven wheel block

A: Travel wheel types A GJS (GGG) with flange on both sides

65: Travel wheel tread

K: Top connection

X indicates: No guide rollers

X indicates: No gearbox considered

The top side of the wheel block is directly bolted to the end carriage with the help of studs.

The mounting flange is bolted on one side of the wheel

Application scenarios

AUTOMOTIVE

Automotive engineering, autonomous driving, and subcontracting

ENERGY SECTOR

Wind power, solar power, hydropower, geothermal power and biomass

PLANT ENGINEERING

Process engineering, power engineering, supply engineering, and production engineering, etc.

MINING

Exploration, extraction, and movement of mineral resources

CONVEYOR SYSTEMS

Upstream/downstream, onshore/offshore production, LNG/H2 transport

SMELTING WORKS

Steel production, metal production, and processing

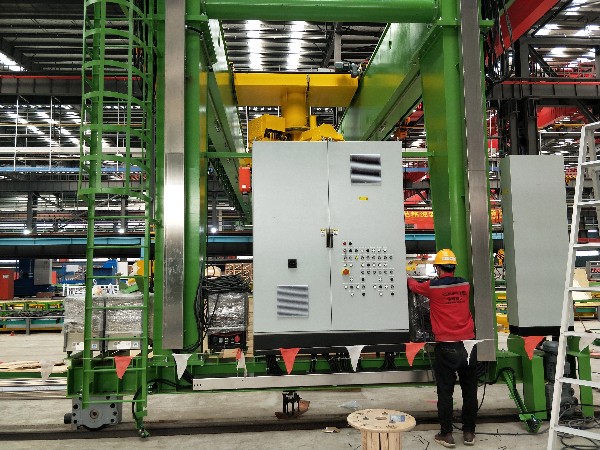

CRANE ENGINEERING

Industrial cranes, process cranes, and container handling

Shiyang is committed to providing high-load, low-maintenance, long-life, and affordable Demag wheel systems to countries in Africa, Europe, America, and Asia. In addition to DRS 200, Shiyang also provides DRS 112, DRS 160, DRS 250, DRS 315, DRS 400, and DRS 500 with loads of 1.27t-40t and wheel cores made of polyurethane, stainless steel, nylon, and other materials.
