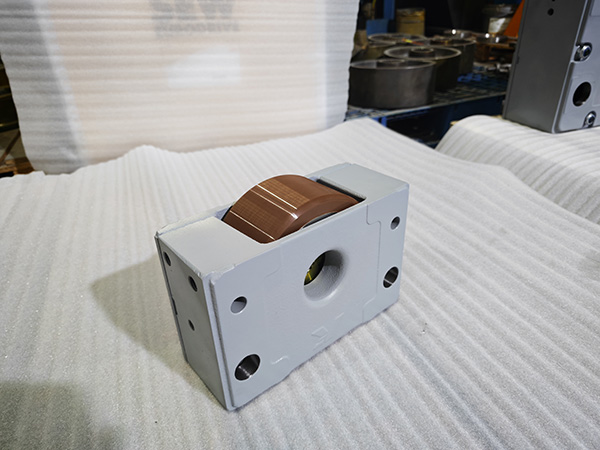

Wheel Block System

Our cleanroom-specific wheel block systems serve as a highly sophisticated, integrated drive unit that protects environmental cleanliness through precision sealing, ESD control, and rigid modular engineering. Crucially, the system features our premium urethane wheels, which eliminate particle shedding and prevent floor marking while delivering exceptional load capacity for 24/7 automated material handling.

Core Tread Material: High-Performance Polyurethane (PU) Elastomer for Cleanroom Wheel Blocks

1. Zero-Particle Wear: Formulated with an exceptionally low Akron abrasion index, this specific PU compound eliminates particle shedding, delamination, and floor marking during high-frequency, heavy-load rolling operations. By preventing micro-particle generation, this material guarantees absolute compliance with strict Class 100/10 semiconductor cleanroom criteria.

2. Anti-Creep & High Load Capacity: For heavy-duty equipment carrying dozens of tons, this advanced elastomer delivers superior anti-creep performance and excellent structural memory. It prevents permanent flat spots (flat deformation) during extended static parking, ensuring a smooth, vibration-free restart that protects sensitive tracking and floor integrity.

3. ESD Protection (Electrostatic Discharge Control): Frictional electrification is a critical hazard in semiconductor environments, as static buildup attracts micro-particles and threatens to puncture sensitive electronic components. To counter this, conductive additives are precisely cross-linked into our polyurethane formulation, stabilizing the wheel’s volume resistivity within the optimal anti-static window of 10^6 Ω ~ 10^9 Ω. This ensures continuous, reliable dissipation of static charges to the ground during rolling operations, completely eliminating electrostatic dust attraction.

4. Chemical Resistance & Sanitization Compatibility: Cleanrooms—especially in pharmaceutical plants, biopharmaceuticals, and advanced electronics—require frequent, aggressive chemical disinfection. Our polyurethane elastomer is molecularly engineered to exhibit exceptional chemical stability. It withstands continuous exposure and recurrent wiping with harsh sanitizers like Isopropyl Alcohol (IPA), ethanol, and Vaporized Hydrogen Peroxide without blistering, hydrolyzing, or cracking, thereby drastically extending the wheel's service life in sterile environments.

5. High Vibration Damping & Ultra-Quiet Operation: Sub-micron manufacturing equipment, such as photolithography systems and electron microscopes, is highly sensitive to ambient micro-vibrations. Thanks to the outstanding intrinsic damping and energy-absorption properties of our premium polyurethane compound, these wheels effectively suppress high-frequency vibrations caused by micro-irregularities on the track or floor. This structural damping limits overall system noise to 55 dB, ensuring a whisper-quiet, vibration-free environment that safeguards precise instrumentation metrics.

6. Advanced Interface Bonding Technology: Under continuous 24/7 heavy-duty configurations, delamination (the peeling of the polymer from the metal core) represents a major operational risk. We utilize proprietary chemical surface treatments combined with a rigorous thermal casting process to achieve an unbreakable molecular bond between the polyurethane tread and the rigid steel wheel core. Even when subjected to abrupt stop-start torques and maximum load capacities, the tread resists peeling and separation, ensuring absolute structural safety.

7. Premium Floor Protection & Low Rolling Resistance: Cleanroom floors typically consist of highly expensive self-leveling epoxy coatings or raised anti-static floor panels that are incredibly costly to repair. By precisely balancing the material hardness (typically Shore 90~95 A), our polyurethane treads minimize rolling resistance to reduce motor energy consumption, while maintaining enough elastomeric compliance to fully protect delicate floors. Unlike rigid metal wheels, they prevent floor cracking, gouging, or delamination under intense weight burdens.

Conclusion:

A cleanroom-rated wheel block is far more than a basic load-bearing component; it is a vital guardian of environmental cleanlinessin semiconductor fabs and pharmaceutical plants. By confining traditional industrial friction and contamination inside a sealed enclosure—driven by the particle-free durability of heavy-duty polyurethane, oil-free bearings, and comprehensive ESD engineering—it delivers the ultimate reliability. Investing in high-tier cleanroom wheel blocks is the cornerstone to securing continuous, 7×24 automated material handling stability.
